Styling Report Queries

In this section:

How to:

You can apply custom styling to specific areas of a report query. When creating a report query in InfoAssist, you can perform the following styling customization.

Top of page
Procedure: How to Style Data and Column Titles in a Report

You can style data, column titles, or both in the report output for the selected data source field.

  1. Select the desired data source field in the Query Design pane.

    The Field tab is displayed in the Control Panel.

  2. Select one of the following in the Style group.
    • Data Style - To style only the data for the selected data source field.
    • Title Style - To style only the column title for the selected data source field.
    • Data + Title - To style both the data and the column title for the selected data source field.
  3. Select any of the following styling options that are available in the Style group.
    • Font type - Use the drop-down menu to change the font type.
    • Font size - Use the drop-down menu to change the numeric value for the font size.
    • Text justification - Click the Justify Left, Justify Center, or Justify Right icon to justify the text.
    • Font styling - Click the Bold, Italic, or Underline icon to style the selected font.
    • Font color - Click the Font Color icon to open the Color dialog box, where you can select the font color.
    • Background color - Click the Background Color icon to open the Color dialog box, where you can select the background color.
Top of page
Procedure: How to Add Headings and Footings to a Report

You can make a report more meaningful by adding headings and footings. Headings and footings supply context and key information about a report, such as its purpose and audience. Headings and footings also provide structure, helping you navigate to the detail sought, and they enhance visual appeal.

In this procedure, you will add and style a report heading and page heading. The procedure uses sample values, but you can supply values that apply to your own, real reports.

This feature is available in Query Design view, Interactive Design view, and Compose view.

  1. With your report open, click the Head/Foot icon in the Report group of the Home tab. The Heading & Footing dialog box opens.
  2. Select the tab for the heading or footing element that you want to add. For a report, you can add a report heading, page heading, page footing, or report footing. By default, the Report Heading tab is selected. In this procedure, accept the default.
  3. Click inside the design area of the dialog box, and type the text for the heading. For example, the text for a sample report heading might be Dollar Sales by Product and Region.
  4. Using the styling ribbon, apply styling to the report heading text. For example, click the arrow next to the font type field, and select HELVETICA. Select 11 for the font size. Click the Italic icon to remove the default italic font, and click the Left justification icon to align the heading text with the left side of the report when it is run.

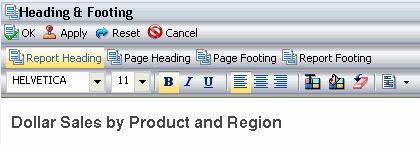

    The sample report heading with the selected styling values is shown in the following image.

    Heading and Footing dialog box

  5. Click Apply to save the changes you have made so far, without closing the dialog box.
  6. To add a page heading, select the Page Heading tab. In this procedure, you are going to add one of the supplied quick text options.
  7. Click the last icon on the right of the styling ribbon, and select Confidential from the drop-down list. Quick text drop-down values

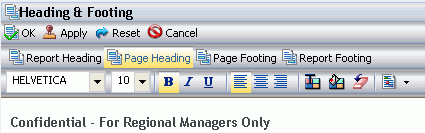

  8. Change the font and font size as desired. For example, change the font to HELVETICA and the size to 10. Click the Left justification icon to align the page heading with the report heading. You can add your own text before or after the supplied text, for example, For Regional Managers Only.

    Heading and Footing dialog box

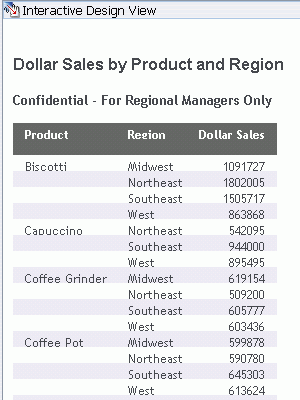

  9. Click OK to save the report heading and page heading and close the Heading & Footing dialog box. The report heading and page heading that you added and styled are shown in Interactive Design View in the following image.

    Report with header and footer output

  10. To make changes to either the report or page heading, right-click the heading and select Edit from the drop-down menu.
Top of page
Procedure: How to Style Headings and Footings in a Report

You can style headings and footings in the report output for the selected heading or footing field.

  1. Highlight the desired heading or footing text in the Query Design pane.

    The Home tab is displayed in the Control Panel.

  2. Click the Style group.

    The Style dialog box opens.

  3. Select any of the following styling options that are available in the Style dialog box.
    • Font type - Use the drop-down menu to change the font type.
    • Font size - Use the drop-down menu to change the numeric value for the font size.
    • Text justification - Click the Justify Left, Justify Center, or Justify Right icon to justify the text.
    • Font styling - Click the Bold, Italic, or Underline icon to style the selected font.
    • Font color - Click the Font Color icon to open the Color dialog box, where you can select the font color.
    • Background color - Click the Background Color icon to open the Color dialog box, where you can select the background color.
    • Reset styles - Click the Resetting styles icon to reset all the options to the default styles from the template.
Top of page
Procedure: How to Style Rows of Data With Alternating Colors in a Report

You can style rows of data with alternating colors in the report output for the selected data source field.

  1. Select the Home tab on the Control Panel.
  2. Select Banded in the Report group.

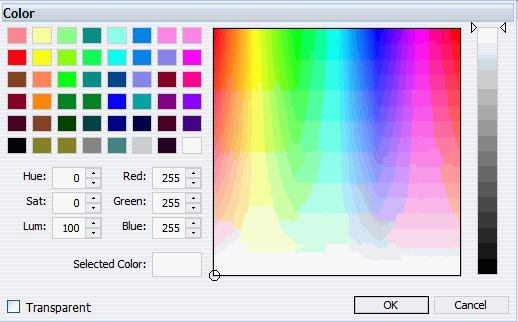

    The Color dialog box opens, as shown in the following image.

    Color selection dialog box

  3. Click a color square on the left side of the dialog box, or click an area of the color palette on the right side of the dialog box.

    You can also select colors by typing numbers in the Hue, Sat, and Lum fields, or in the Red, Green, and Blue fields. You can also use the up and down arrows next to each field to set numeric values.

    Make sure that the selected color appears in the Selected Color field and that the Transparent check box is not selected.

  4. Click OK.
  5. Run the report.

The selected color provides an alternating color scheme for the report. The report output displays alternating rows of data, using a white background for one row and a background of the selected color for the next row. This pattern continues throughout the report, as shown in the following image of Banded report output.

Banded report output

Top of page
Procedure: How to Apply Traffic Light Conditional Styling to Data in a Report

You can apply conditional traffic light styling to data for a selected numeric measure field. By default, the report displays the values that satisfy the first condition in green, and the values that satisfy the second condition in red.

  1. Select the numeric measure data source field in the Query Design pane.

    The Field tab is displayed in the Control Panel.

  2. Select Traffic Lights from the Specific group.

    The Traffic Light Condition dialog box opens, displaying the green light selection fields. You can select and type green light criteria in these fields.

  3. From the drop-down menu below the selected data source field name, choose one of the following relational operators:
    • Equal to
    • Not equal to
    • Greater than
    • Less than
    • Greater than or equal to
    • Less than or equal to
  4. In the field to the right of the operator drop-down menu, type the desired value for the selected operator. Data values that meet the criteria will display in green in the report output.

    Alternatively, you can select an option from the Values drop-down menu, and select the desired data value in the Data Values dialog box that opens. From the Values drop-down menu, as shown in the following image, you can select Fetch All Values from Source, Fetch Values from Disk File, Fetch First Value in Source, Fetch Last Value in Source, Fetch Minimum, or Fetch Maximum.

    Data Values dialog box Values options

  5. Click Add New.

    The red light selection fields are displayed in the Traffic Light Condition dialog box, where you can select and type red light criteria.

  6. From the red light drop-down menu, choose the desired relational operator.
  7. In the field to the right of the red light drop-down menu, type the desired value for the selected operator. WebFOCUS will display data values that meet the criteria in red in the report output.

    Alternatively, you can select an option from the Values drop-down menu, and select the desired value in the Data Values dialog box that opens.

  8. Perform any of the following actions in the Traffic Light Condition dialog box.
    • To delete an existing traffic light condition, click the Remove button.
    • To apply styling and to change colors, click the Style button. In the Style pop-up menu that opens, click the color Color icon icon to open the Color dialog box, where you can select a color different from the default green and red colors that appear for the first two conditions. When selecting colors, you can click a color square on the left side of the dialog box or click an area of the color palette on the right side of the dialog box. You can also select colors by typing numbers in the Hue, Sat, and Lum fields, or in the Red, Green, and Blue fields. You can also use the up and down arrows next to each field to set numeric values.
    • To add more traffic light conditions, click Add New and select a different color for each new condition that you specify.
  9. Click OK when you are ready to close the Traffic Light Condition dialog box.
  10. Run the report.

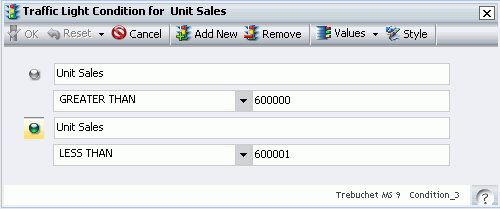

The following image shows the Traffic Light Condition dialog box. It contains criteria to display values for Unit Sales that are greater than 600000 in green, and values for Unit Sales that are less than 600001 in red.

Traffic Light Condition dialog box

The following image shows the resulting report output with the traffic light conditional styling applied. The data in the Unit Sales column is displayed in either green or red, according to the criteria that was specified in the Traffic Light Condition dialog box.

Traffic Light Condition report output

Top of page
Procedure: How to Use Cell Padding in a Report

You can customize the amount of space inserted between rows and columns in a report.

  1. Select the Layout tab in the Control Panel.
  2. Select Custom from the drop-down menu for the Cell Padding button in the Report group.

    The Cell Padding dialog box opens.

    Cell Padding dialog box

  3. Type the desired cell padding values in the Top, Bottom, Left, and Right fields.
  4. Click OK.
Top of page
Changing a Field Format

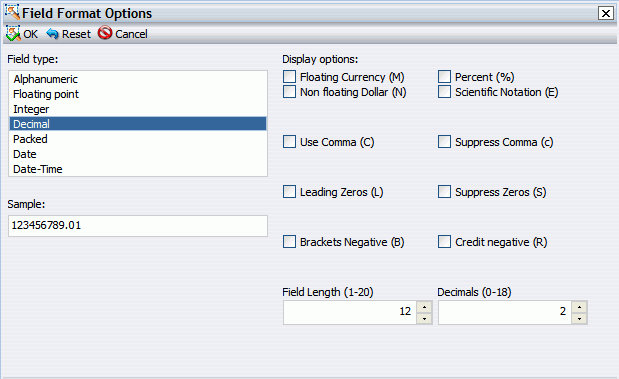

You can change the default formats that are assigned to a virtual or column field in InfoAssist. The following image shows the Field Format Options dialog box.

Field Format Options dialog box

The following procedures show how to change a field format from the FIeld Format Options dialog box. For more information on how to use the Format group options from the Control Panel, see Using the Field Tab.

Top of page
Procedure: How to Assign an Alphanumeric Format
  1. Select the virtual or column field.
  2. Right-click and select Edit Format from the drop-down menu.

    The Field Format Options dialog box opens.

  3. Select the Alphanumeric option in the Field Type option group.
  4. To assign a different length, specify a number between 1 and 4095 in the Total Length box. The default value is 20.
  5. Click OK to close the Field Format Options dialog box and return to the Results Panel. The new format appears in the previously selected column.
Top of page
Procedure: How to Assign a Numeric Format
  1. Select the virtual or column field.
  2. Right-click and select Edit Format from the drop-down menu.

    The Field Format Options dialog box opens.

  3. Select one of the following options in the Field Type option group:
    • Floating Point (default length 7.2)
    • Integer (default length 5)
    • Decimal (default length 12.2)
    • Packed (default length 12.2)

    If the selected field matches the selected format type, its current length appears in the Length box. Otherwise, the default length appears in the Length box. The Decimal box shows the numbers of decimal places for Floating Point, Decimal, and Packed.

  4. To assign a different length, specify numbers in the Length box for format types as follows: 1-9 for Floating Point, 1-11 for Integer, 1-20 for Decimal, and 1-33 for Packed.
  5. To assign a different number of decimal places for Floating Point, Decimal, or Packed, specify the number in the Decimal box.
  6. Click OK to close the Field Format Options dialog box and return to the Results Panel. The new format appears in the previously selected column.
Top of page
Procedure: How to Assign a Date Format
  1. Select the virtual or column field.
  2. Right-click and select Edit Format from the drop-down menu.

    The Field Format Options dialog box opens.

  3. Select the Date option in the Field Type option group.
  4. To assign a different date display format, select a date format from the Display Options box. The default date display format is MDY.
  5. Click OK to close the Field Format Options dialog box and return to the Results Panel. The new format appears in the previously selected column.
Top of page
Procedure: How to Assign a Date-Time Format
  1. Select the virtual or column field.
  2. Right-click and select Edit Format from the drop-down menu.

    The Field Format Options dialog box opens.

  3. Select the Date-Time option in the Field Type option group.
  4. To assign a different date-time format, first select the date format you wish to use from either the Year First, Month First, or Day First drop-down menu.
  5. Select a time format (if applicable) from the options box on the right.

    Selecting the Time Only check box will let you only set a time format.

  6. Click OK to close the Field Format Options dialog box and return to the Results Panel. The new format appears in the previously selected column.
Top of page
Procedure: How to Add a Percent Sign to a Numeric Field

You can add a percent sign to the end of a numeric value (Decimal, Integer, and Floating Point format types). This numeric display option includes a percent sign along with the numeric data, but does not calculate the percent.

  1. Select the virtual or column field.
  2. Right-click and select Edit Format from the drop-down menu.

    The Field Format Options dialog box opens.

  3. Select one of the numeric value format types in the Field Type option group and then select the Percent (%) check box.
  4. Click OK to close the Field Format Options dialog box and return to the Results Panel. The new format appears in the previously selected column.
